Name: LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: ЛИ-750Б
Price: 17500 USD
Availability: InStock

Дом > продукты > машина коробки угловая наклеивая >

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Место происхождения:

Китай

Фирменное наименование:

Lishunyuan

Сертификация:

Номер модели:

ЛИ-750Б

Документ:

LY-750B Automatic Corner Pa...up.pdf

Свяжитесь мы

Запросите цитату

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Подробная информация о продукции

Модель:

ЛИ-750Б

Максимальный размер бумаги:

740*640 мм

Толщина бумаги:

1-4 мм

Размер коробки (макс.):

Д500*Ш400*В150мм

Размер коробки (мин):

L80*W60*H20 мм

Размер рукавной коробки (макс.):

Д400*Ш120*В150мм

Размер рукавной коробки (мин):

L80*W30*H20мм

Высота бумажного стога:

1000 мм

Скорость производства:

25-45 шт./мин.

Источник питания:

380 В/50 Гц

Общая мощность:

3,88 кВт

Давление воздуха:

0,5-0,8 МПа

Размер ширины ленты:

19 мм

Вес машины:

1280KG

Размер машины:

2250*2100*2200мм

Выделить:

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Условия оплаты и доставки

Количество мин заказа

Цена

Negotiate

Упаковывая детали

ящик из пленки и фанеры

Время доставки

15-20 дней

Условия оплаты

Т/Т

Поставка способности

15 SETS/MONTH

Сопутствующие продукты

LY-430TJ Машина для склеивания нескольких углов Машина для склеивания углов Машина для склеивания коробок с рукавами

Получите самую лучшую цену

Видео

LY-750 Box Corner Pasting Machine с полностью автоматизированным аппликатором для укрепления углов для быстрой и точной обработки картона

Получите самую лучшую цену

LY-TJ40 полуавтоматическая коробка угловой клеевой машины скорость работы 20 - 40 PCS / мин

Получите самую лучшую цену

Видео

LY-750 85 шт/мин Полностью автоматизированная угловая клеящая машина

Получите самую лучшую цену

Свяжитесь мы

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Свяжитесь сейчас

Описание продукта

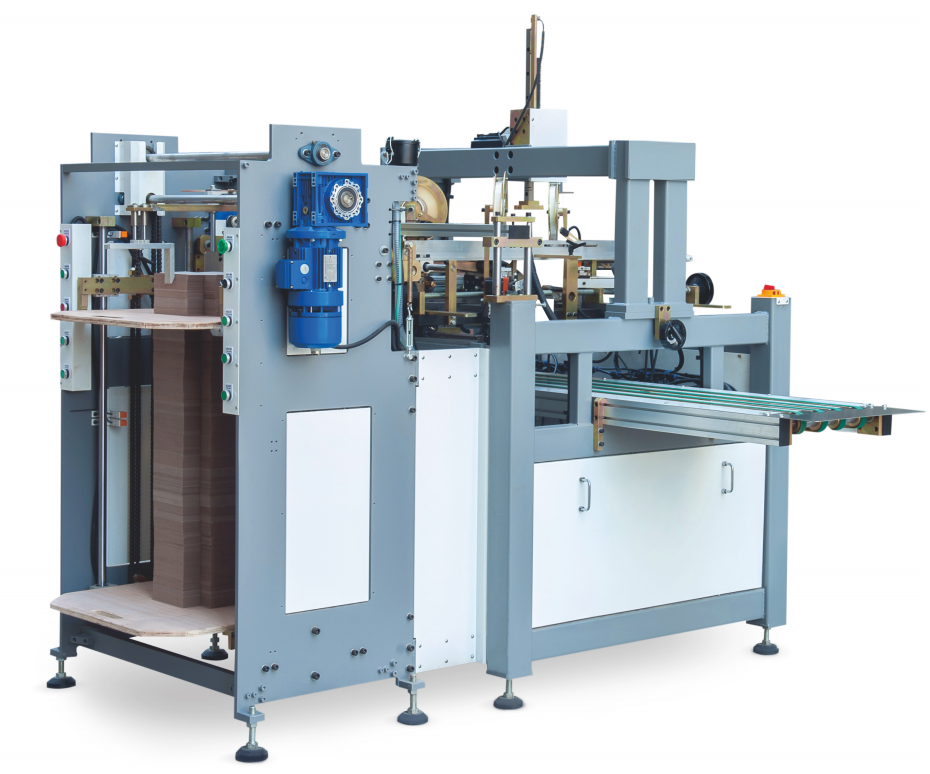

LY-750B Automatic Corner Pasting Machine (Intelligent Setup)

This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Key Features

Intelligent setup interface system, which is simple, easy to learn, understand and operate.
Setting up time in 10mins.
The full servo drive control system and PLC programming ensure the accuracy and performance of the product.
Non-stop feeding, reduce labor intensity,decrease machine stopping time .
The paper feeding adopts a belt-driven pull-out system, effectively increasing production output.
Compatible with PET and kraft paper tape, providing a variety of options for your products.
The production efficiency of this machine is 3 to 5 times that of traditional manual corner pasting.
Multiple functions able to do square boxes and sleeves boxes.

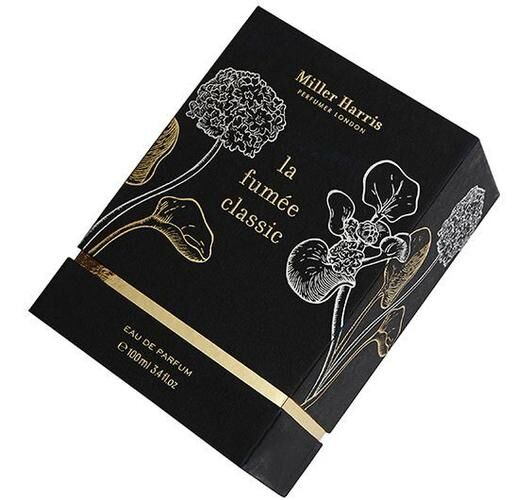

Product Examples

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

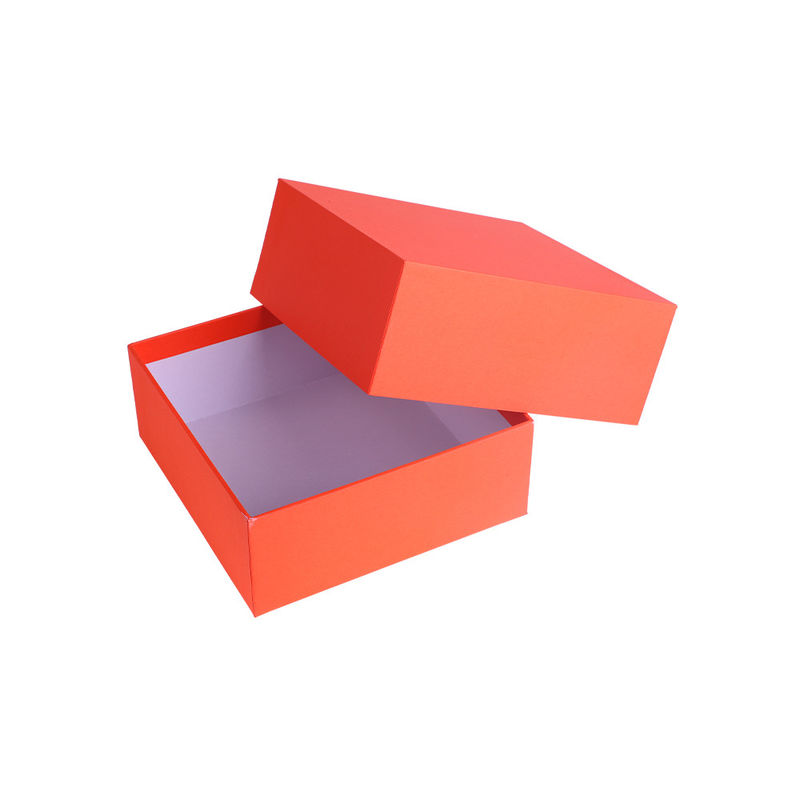

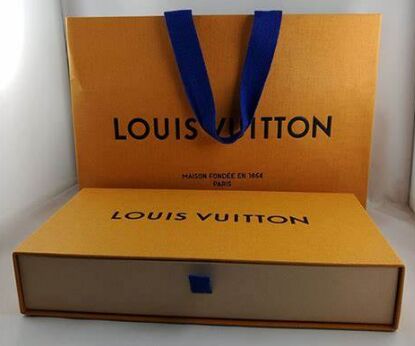

Product Types

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Technical Specification

Model	LY-750B
Maximum paper size	740*640mm
Paper thickness	1-4mm
Box size(max)	L500W400H150mm
Box size(min)	L80W60H20mm
Sleeve box size(max)	L400W120H150mm
Sleeve box size(min)	L80W30H20mm
Paper stack height	1000mm
Production speed	25-45 pcs/min
Power supply	380V/50Hz
Total power	3.88kw
Air pressure	0.5-0.8Mpa
Tape width size	19mm
Machine dimension	255021002200mm
Machine weight	1280kg

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
